Product Description

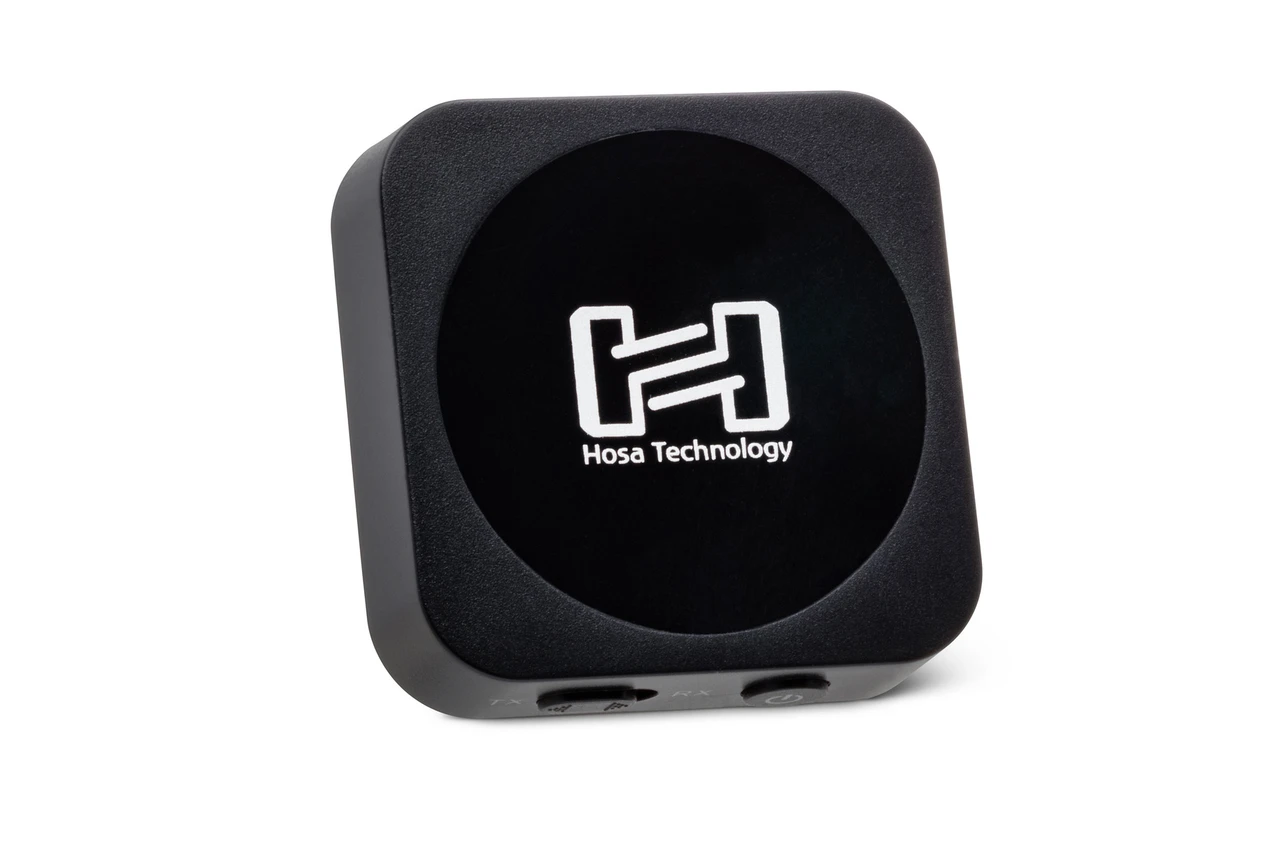

Hosa IBT-402 Drive Bluetooth Audio Interface
Transmitter/Receiver
Hosa Drive Bluetooth® Audio Interface is the best way to hook up your music anywhere. This versatile Bluetooth interface is designed to add wireless capabilities to an analog mixing console, vinyl turntable, or other device not equipped with Bluetooth technology. Features include:
• Use as transmitter or receiver to fit your needs
• Quick pairing for easy set-up of devices
• Play your music for up to 8 hours in TX mode

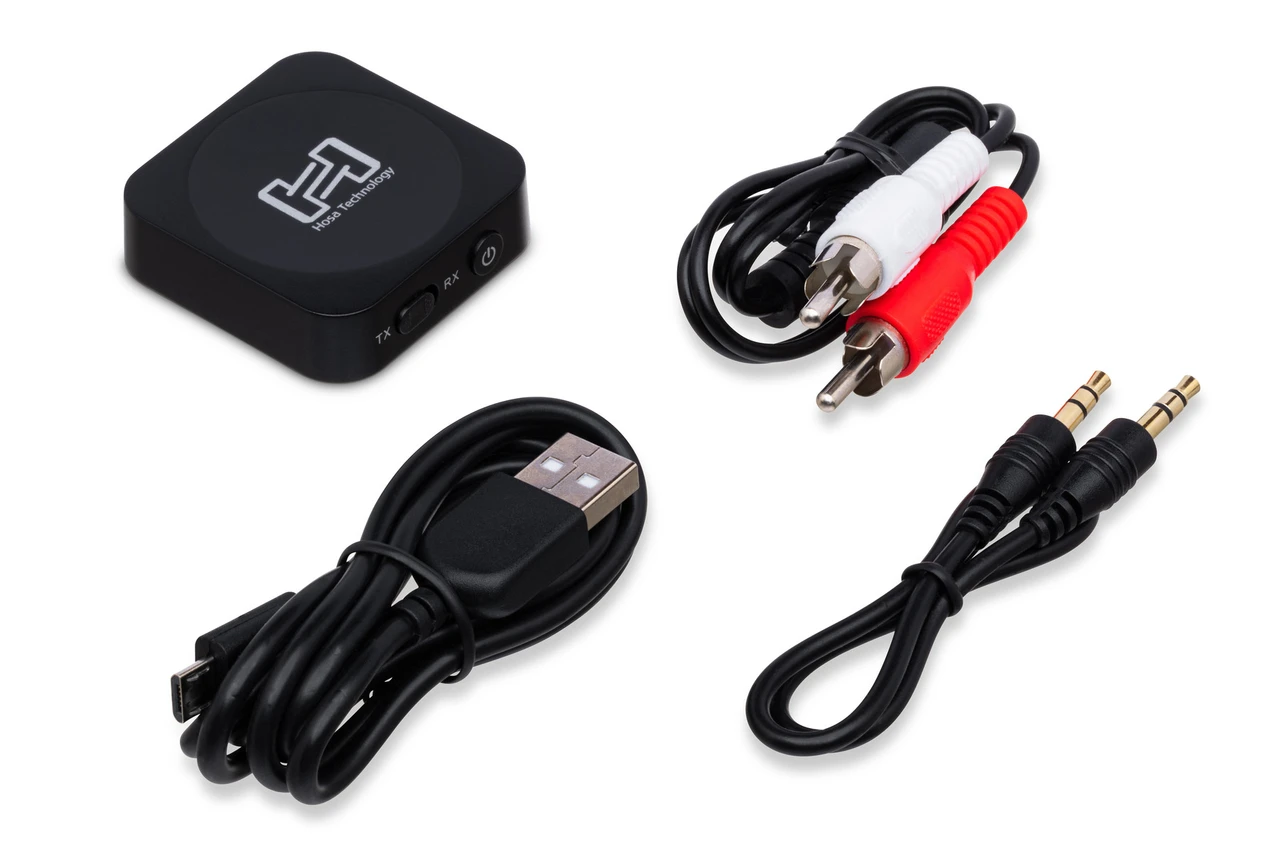

Contents
Bluetooth Interface
Stereo Interconnect, Molded 3.5 mm TRS to Same
Dual RCA Splitter
USB Cable

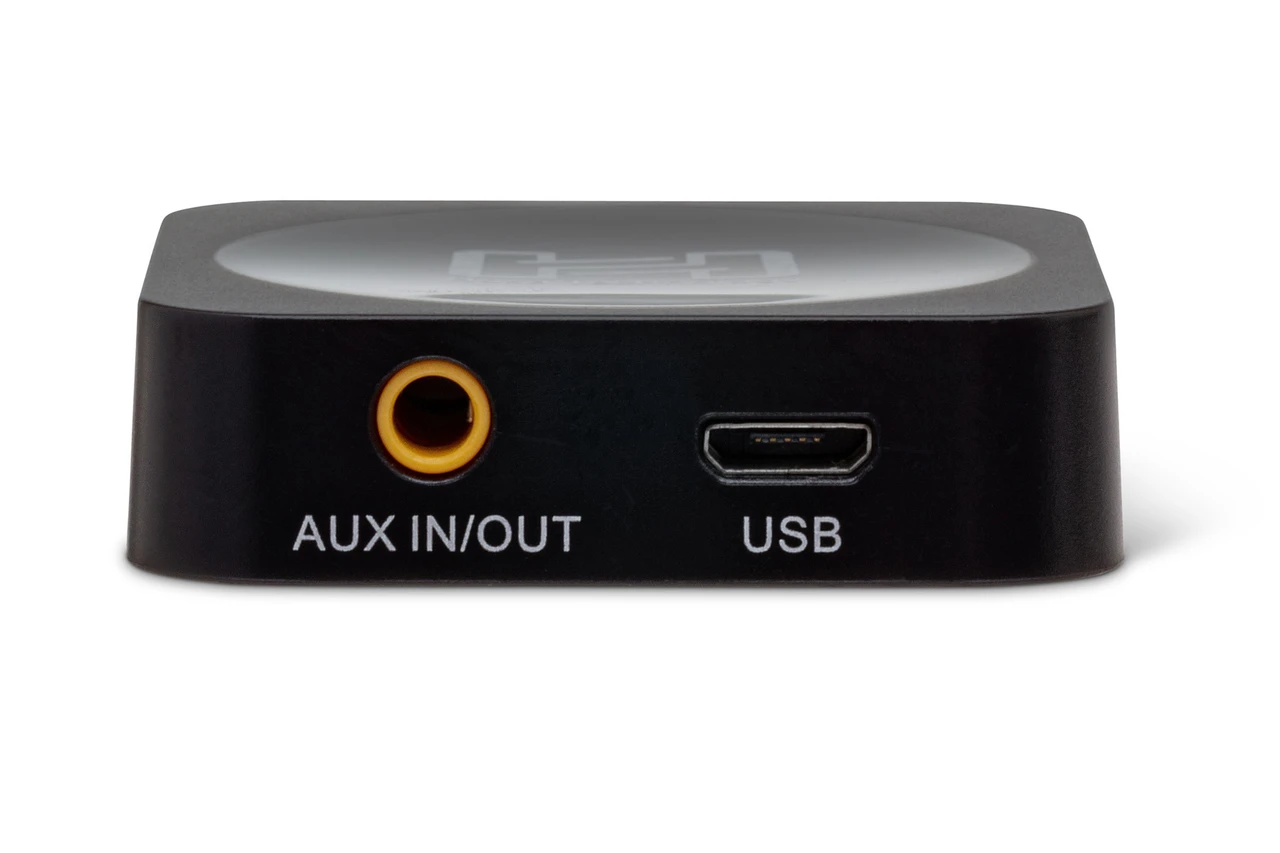

Connector 1: 3.5 mm TRS (Audio)
Connector 2: USB (Charging Only)
What is a Bluetooth Audio Transmitter / Receiver?
A Bluetooth Audio Transmitter/Receiver transmits audio from a source to a connected Bluetooth device like wireless headphones. The Bluetooth device that receives the audio transmission has a Bluetooth receiver that decodes the transmission into audio.
Hosa’s Bluetooth Audio Transmitter/Receiver can also receive audio transmissions by pairing it with speakers to broadcast songs from your phone or computer.
How do I use a Bluetooth Audio Transmitter / Receiver?
Bluetooth Audio Transmitter Setup
To utilize your Bluetooth Audio Transmitter/Receiver as a Transmitter, start by fully charging your device. Once charged, turn it on by holding the multi-function button for three seconds. The blue light will blink once powered on.
Select TX using the mode selector switch. Connect one end of the audio cable to the transmitter and the other end to a source’s audio output.
Next, initiate pairing mode by holding the multi-function button until you see alternating red and blue lights. Set your receiving Bluetooth device (i.e. wireless headphones) into pairing mode and hold the devices in close proximity until pairing is successful.
Specifications
- Series IBT- 402
- Frequency Range 2402 MHz – 2480 MHz
- Supports APTX, A2DP, AVRCP
- Operating Distance 10 M (open space)
- Battery 200 mAh
- Operating Time Up to 8 hours in TX,
- up to 6 hours in RX
- Charging Time About 2 hours
- Input Voltage DC 5 V
Contents
- Drive Interface
- USB charging cable
- Audio interconnect, 3.5 mm TRS to same
- Stereo breakout, 3.5 mm TRS to 2 x RCA
